Monitoring CoreDNS in EKS with Grafana Cloud

ssh -i ~/.ssh/id_ed25519 [email protected] # BASTION-HOST-IP
# The authenticity of host '43.201.85.169 (43.201.85.169)' can't be established.
# ED25519 key fingerprint is SHA256:efFNF+24E7UUEzXzhqBDU0ss74yBmhGiaOI25XOVG9A.
# This key is not known by any other names.
# Are you sure you want to continue connecting (yes/no/[fingerprint])? yes
# Warning: Permanently added '43.201.85.169' (ED25519) to the list of known hosts.
#    ,     #_
#    ~\_  ####_        Amazon Linux 2
#   ~~  \_#####\
#   ~~     \###|       AL2 End of Life is 2025-06-30.
#   ~~       \#/ ___
#    ~~       V~' '->
#     ~~~         /    A newer version of Amazon Linux is available!
#       ~~._.   _/
#          _/ _/       Amazon Linux 2023, GA and supported until 2028-03-15.
#        _/m/'           https://aws.amazon.com/linux/amazon-linux-2023/

# 10 package(s) needed for security, out of 13 available
# Run "sudo yum update" to apply all updates.
# (cm112@myeks:N/A) [root@myeks-bastion ~]# clear

tail -f /var/log/cloud-init-output.log \
#  66 †php8.1                   available    [ =stable ]
#  67  awscli1                  available    [ =stable ]
#  68 †php8.2                   available    [ =stable ]
#  69  dnsmasq                  available    [ =stable ]
#  70  unbound1.17              available    [ =stable ]
#  72  collectd-python3         available    [ =stable ]
# † Note on end-of-support. Use 'info' subcommand.
# Created symlink from /etc/systemd/system/multi-user.target.wants/docker.service to /usr/lib/systemd/system/docker.service.
# cloudinit End!
# Cloud-init v. 19.3-46.amzn2.0.2 finished at Sat, 02 Nov 2024 09:44:24 +0000. Datasource DataSourceEc2.  Up 91.81 seconds
^C

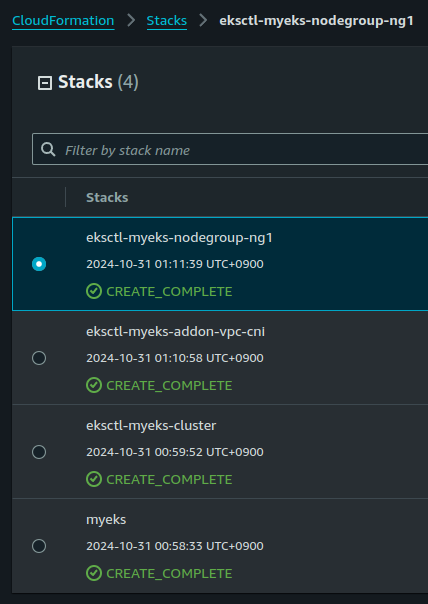

tail -f /root/create-eks.log
    "availabilityZones": [
        "ap-northeast-2c",
        "ap-northeast-2b",
        "ap-northeast-2a"
    ],
    "cloudWatch": {
        "clusterLogging": {}
    }
}

^C
kubectl ns default
# Context "[email protected]" modified.
# Active namespace is "default".
eksctl get cluster
# NAME	REGION		EKSCTL CREATED
# myeks	ap-northeast-2	True
# eksctl get nodegroup --cluster $CLUSTER_NAME
# CLUSTER	NODEGROUP	STATUS	CREATED			MIN SIZE	MAX SIZEDESIRED CAPACITY	INSTANCE TYPE	IMAGE ID	ASG NAME		TYPE
# myeks	ng1		ACTIVE	2024-11-02T09:55:58Z	3		3	3t3.medium	AL2_x86_64	eks-ng1-2cc97626-bf01-5bcc-d680-091e003bd586	managed
export | egrep 'ACCOUNT|AWS_|CLUSTER|KUBERNETES|VPC|Subnet' | egrep -v 'SECRET|KEY'
# declare -x ACCOUNT_ID="<ACCOUNT-ID>"
# declare -x AWS_DEFAULT_REGION="ap-northeast-2"
# declare -x AWS_PAGER=""
# declare -x AWS_REGION="ap-northeast-2"
# declare -x CLUSTER_NAME="myeks"
# declare -x KUBERNETES_VERSION="1.30"
# declare -x PrivateSubnet1="subnet-044cf8b34576820ea"
# declare -x PrivateSubnet2="subnet-0ac2f3cd52e1ae640"
# declare -x PrivateSubnet3="subnet-0e5b144c0039c348b"
# declare -x PubSubnet1="subnet-0fef215562a97f319"
# declare -x PubSubnet2="subnet-0ca12b8db356bd486"
# declare -x PubSubnet3="subnet-01628d89d7c34590b"
# declare -x VPCID="vpc-0bcfa9363c4ff0069"
kubectl get node --label-columns=node.kubernetes.io/instance-type,eks.amazonaws.com/capacityType,topology.kubernetes.io/zone

# NAME                                               STATUS   ROLES    AGE   VERSION               INSTANCE-TYPE   CAPACITYTYPE   ZONE
# ip-192-168-1-219.ap-northeast-2.compute.internal   Ready    <none>   12m   v1.30.4-eks-a737599   t3.medium       ON_DEMAND      ap-northeast-2a
# ip-192-168-2-198.ap-northeast-2.compute.internal   Ready    <none>   12m   v1.30.4-eks-a737599   t3.medium       ON_DEMAND      ap-northeast-2b
# ip-192-168-3-85.ap-northeast-2.compute.internal    Ready    <none>   12m   v1.30.4-eks-a737599   t3.medium       ON_DEMAND      ap-northeast-2c

eksctl get iamidentitymapping --cluster myeks
# ARN											USERNAME				GROUPS					ACCOUNT
# arn:aws:iam::<ACCOUNT-ID>:role/eksctl-myeks-nodegroup-ng1-NodeInstanceRole-bU6W7Cr0ugY5	system:node:{{EC2PrivateDNSName}}	system:bootstrappers,system:nodes
eksctl get iamidentitymapping --cluster myeks
# ARN											USERNAME				GROUPS					ACCOUNT
# arn:aws:iam::<ACCOUNT-ID>:role/eksctl-myeks-nodegroup-ng1-NodeInstanceRole-bU6W7Cr0ugY5	system:node:{{EC2PrivateDNSName}}	system:bootstrappers,system:nodes

1. Hands-on을 위한 환경 구성

이제는 Hands-on에서 Pre-requisite로 요구하는 환경변수를 추가로 구성해보겠습니다.

export EKS_CLUSTER_NAME=$(echo $CLUSTER_NAME)
export SERVICE=prometheusservice
export ACK_SYSTEM_NAMESPACE=ack-system
# export RELEASE_NAME=`curl -sL https://api.github.com/repos/aws-controllers-k8s/$SERVICE-controller/releases/latest | grep '"tag_name":' | cut -d'"' -f4`

여기서 오래된 포스팅의 이슈를 발견하게 되는데,
GitHub REST API가 더 안전해졌기 때문에, REALASE_NAME 가져오는 것이 불가능에 가까워졌습니다!

curl -sL https://api.github.com/repos/aws-controllers-k8s/$SERVICE-controller/releases/latest
# {
#   "message": "Not Found",
#   "documentation_url": "https://docs.github.com/rest/releases/releases#get-the-latest-release",
#   "status": "404"
# }

~~배트맨! 초능력도 없는 우린 뭘 할 수 있죠?~~
rest-api-404

보통이면 레포를 당겨와서, git tag를 통해 확인하는게 맞는데, 핸즈온이니 링크를 열어서 최신 태그를 참고하시기 바랍니다.

aws-controllers-k8s/ prometheusservice-controller@GitHub

저도 번거로워서 302 Found 처리하여 태그 받아왔습니다.

curl -sS -I -G  https://github.com/aws-controllers-k8s/$SERVICE-controller/releases/latest | grep -i location | awk -F'/' '{print $NF}'
# v1.2.15
export RELEASE_NAME=$(curl -sS -I -G  https://github.com/aws-controllers-k8s/$SERVICE-controller/releases/latest | grep -i location | awk -F'/' '{print $NF}')
echo $RELEASE_NAME
# v1.2.15

2. Hands-On 무작정 따라하기

(a) Amazon Managed Prometheus Workspace 생성

aws amp create-workspace --alias blog-workspace --region $AWS_REGION
# {
#     "arn": "arn:aws:aps:ap-northeast-2:<ACCOUNT-ID>:workspace/ws-0d032a51-2b98-43b1-90cb-f5069329f1af",
#     "status": {
#         "statusCode": "CREATING"
#     },
#     "tags": {},
#     "workspaceId": "ws-0d032a51-2b98-43b1-90cb-f5069329f1af"
# }

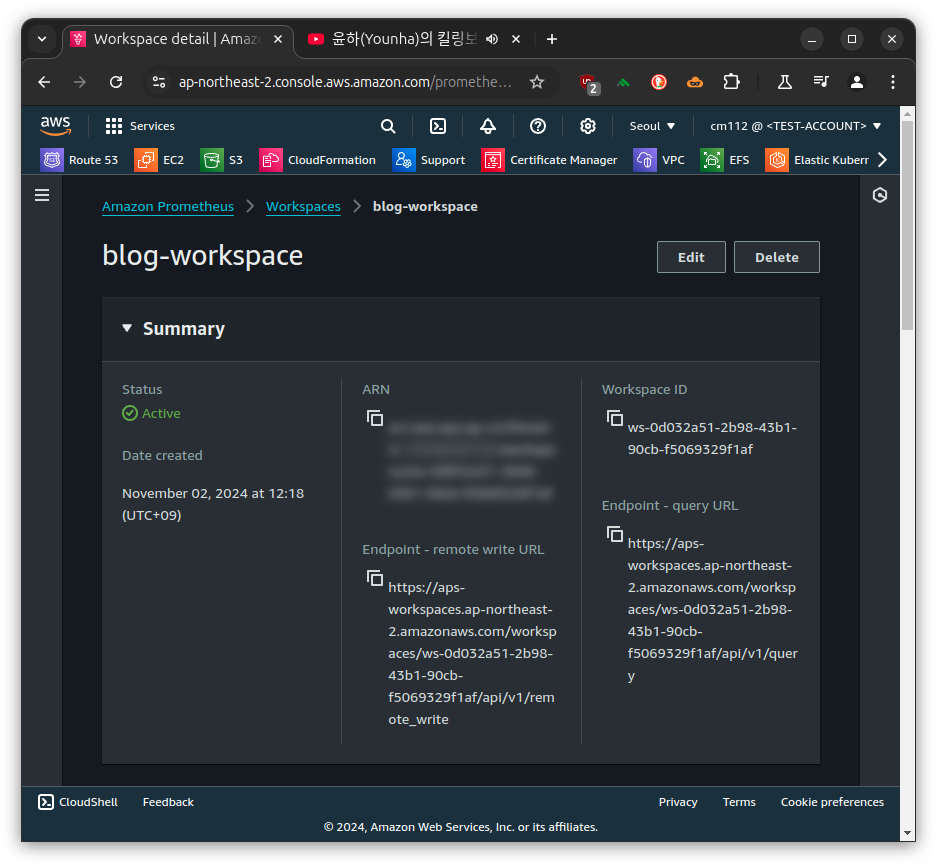

create-workspace

(b) Prometheus ethtool exporter 배포

안내된대로 exporter를 배포문을 작성해보겠습니다.

cat << EOF > ethtool-exporter.yaml
---
apiVersion: apps/v1
kind: DaemonSet
metadata:
  name: ethtool-exporter
  labels:
    app: ethtool-exporter
spec:
  updateStrategy:
    rollingUpdate:
      maxUnavailable: 100%
  selector:
    matchLabels:
      app: ethtool-exporter
  template:
    metadata:
      annotations:
        prometheus.io/scrape: 'true'
        prometheus.io/port: '9417'
      labels:
        app: ethtool-exporter
    spec:
      hostNetwork: true
      terminationGracePeriodSeconds: 0
      containers:
      - name: ethtool-exporter
        env:
        - name: IP
          valueFrom:
            fieldRef:
              fieldPath: status.podIP
        image: drdivano/ethtool-exporter@sha256:39e0916b16de07f62c2becb917c94cbb3a6e124a577e1325505e4d0cdd550d7b
        command:
          - "sh"
          - "-exc"
          - "python3 /ethtool-exporter.py -l \$(IP):9417 -I '(eth|em|eno|ens|enp)[0-9s]+'"
        ports:
        - containerPort: 9417
          hostPort: 9417
          name: http

        resources:
          limits:
            cpu: 250m
            memory: 100Mi
          requests:
            cpu: 10m
            memory: 50Mi

      tolerations:
      - effect: NoSchedule
        key: node-role.kubernetes.io/master

---
apiVersion: v1
kind: Service
metadata:
  labels:
    app: ethtool-exporter
  name: ethtool-exporter
spec:
  clusterIP: None
  ports:
    - name: http
      port: 9417
  selector:
    app: ethtool-exporter
EOF

kubectl apply -f ethtool-exporter.yaml

단순 exporter니까 배포는 잘 된 것 같습니다.

kubectl get pods,svc -owide
# NAME                         READY   STATUS    RESTARTS   AGE   IP              NODE                                               NOMINATED NODE   READINESS GATES
# pod/ethtool-exporter-b62vt   1/1     Running   0          51s   192.168.2.198   ip-192-168-2-198.ap-northeast-2.compute.internal   <none>           <none>
# pod/ethtool-exporter-jbdlx   1/1     Running   0          51s   192.168.1.219   ip-192-168-1-219.ap-northeast-2.compute.internal   <none>           <none>
# pod/ethtool-exporter-pj2r7   1/1     Running   0          51s   192.168.3.85    ip-192-168-3-85.ap-northeast-2.compute.internal    <none>           <none>

# NAME                       TYPE        CLUSTER-IP   EXTERNAL-IP   PORT(S)    AGE   SELECTOR
# service/ethtool-exporter   ClusterIP   None         <none>        9417/TCP   51s   app=ethtool-exporter
# service/kubernetes         ClusterIP   10.100.0.1   <none>        443/TCP    16h   <none>

(c) ADOT(AWS Distro for OpenTelemetry) Collector 요구사항 체크

Pre-requisite 를 유의해야할 것 같습니다.

Docs: Requirements for Getting Started with ADOT using EKS Add-Ons
kubectl, eksctl, AWS CLI v2 : 설치 확인
Cluster 버전 확인 : v1.21 이상 확인

kubectl version | grep "Server Version"
# Server Version: v1.30.6-eks-7f9249a

ADOT add-on 호환 버전 확인 : v0.62.1 이하 버전이 아니면 별도 작업 필요없음.

aws eks describe-addon-versions --addon-name adot --kubernetes-version 1.30 --query 'addons[0].addonVersions[*].addonVersion'
# [
#     "v0.102.1-eksbuild.2",
#     "v0.102.1-eksbuild.1",
#     "v0.102.0-eksbuild.1"
# ]

(d) ADOT Collector를 위한 cert-manager 설치

kubectl apply -f https://github.com/cert-manager/cert-manager/releases/download/v1.8.2/cert-manager.yaml
kubectl get pod -n cert-manager
# NAME                                       READY   STATUS    RESTARTS   AGE
# cert-manager-cainjector-5dbdc949c4-r2wpn   1/1     Running   0          29s
# cert-manager-d68cffc95-wsx5c               1/1     Running   0          29s
# cert-manager-webhook-759ddb6555-fzl24      1/1     Running   0          29s

(e) ADOT Collector를 위한 IRSA 생성

해당 Policy ARN이 실제 존재하는지 정도는 체크하고 생성하면 정신건강에 좋습니다.

echo :$AWS_REGION:$EKS_CLUSTER_NAME:
# :ap-northeast-2:myeks:
eksctl create iamserviceaccount \
--name adot-collector \
--namespace default \
--region $AWS_REGION \
--cluster $EKS_CLUSTER_NAME \
--attach-policy-arn arn:aws:iam::aws:policy/AmazonPrometheusRemoteWriteAccess \
--approve \
--override-existing-serviceaccounts
# 2024-11-03 11:27:22 [ℹ]  1 iamserviceaccount (default/adot-collector) was included (based on the include/exclude rules)
# 2024-11-03 11:27:22 [!]  metadata of serviceaccounts that exist in Kubernetes will be updated, as --override-existing-serviceaccounts was set
# 2024-11-03 11:27:22 [ℹ]  1 task: {
#     2 sequential sub-tasks: {
#         create IAM role for serviceaccount "default/adot-collector",
#         create serviceaccount "default/adot-collector",
#     } }2024-11-03 11:27:22 [ℹ]  building iamserviceaccount stack "eksctl-myeks-addon-iamserviceaccount-default-adot-collector"
# 2024-11-03 11:27:22 [ℹ]  deploying stack "eksctl-myeks-addon-iamserviceaccount-default-adot-collector"
# 2024-11-03 11:27:22 [ℹ]  waiting for CloudFormation stack "eksctl-myeks-addon-iamserviceaccount-default-adot-collector"
# 2024-11-03 11:27:52 [ℹ]  waiting for CloudFormation stack "eksctl-myeks-addon-iamserviceaccount-default-adot-collector"
# 2024-11-03 11:27:52 [ℹ]  created serviceaccount "default/adot-collector"

(f) ADOT add-on 설치

이미 버전 체크를 해보았지만, 다시 해봅시다.

aws eks describe-addon-versions --addon-name adot --kubernetes-version 1.30 \
--query "addons[].addonVersions[].[addonVersion, compatibilities[].defaultVersion]" --output text
# v0.102.1-eksbuild.2
# True
# v0.102.1-eksbuild.1
# False
# v0.102.0-eksbuild.1
# False
aws eks create-addon --addon-name adot --addon-version v0.102.1-eksbuild.2 --cluster-name $EKS_CLUSTER_NAME
# {
#     "addon": {
#         "addonName": "adot",
#         "clusterName": "myeks",
#         "status": "CREATING",
#         "addonVersion": "v0.102.1-eksbuild.2",
#         "health": {
#             "issues": []
#         },
#         "addonArn": "arn:aws:eks:ap-northeast-2:<ACCOUNT-ID>:addon/myeks/adot/eec977ee-84a1-85fe-ecbe-a2f51c90e9e7",
#         "createdAt": "2024-11-03T11:31:33.678000+09:00",
#         "modifiedAt": "2024-11-03T11:31:33.694000+09:00",
#         "tags": {}
#     }
# }

제대로 배포되었나 체크해보겠습니다.

kubectl get po -n opentelemetry-operator-system
# NAME                                     READY   STATUS    RESTARTS   AGE
# opentelemetry-operator-b7dbbdf7c-tqvfl   2/2     Running   0          64s

(g) ADOT Collector 구성

아래와 같이 collector-config-amp.yaml을 작성하고, 배포합니다.

환경변수 잘 체크해야합니다.
- AMP_REMOTE_WRITE_ENDPOINT : 먼저 생성했던 그거 맞습니다.
- AWS_REGION
- EKS_CLUSTER_NAME

# export AMP_REMOTE_WRITE_ENDPOINT=<AMP_REMOTE_WRITE_ENDPOINT>
export AMP_REMOTE_WRITE_ENDPOINT=https://aps-workspaces.ap-northeast-2.amazonaws.com/workspaces/ws-0d032a51-2b98-43b1-90cb-f5069329f1af/api/v1/remote_write
echo $AMP_REMOTE_WRITE_ENDPOINT
# https://aps-workspaces.ap-northeast-2.amazonaws.com/workspaces/ws-0d032a51-2b98-43b1-90cb-f5069329f1af/api/v1/remote_write
cat > collector-config-amp.yaml <<EOF
---
apiVersion: opentelemetry.io/v1alpha1
kind: OpenTelemetryCollector
metadata:
  name: my-collector-amp
spec:
  mode: deployment
  serviceAccount: adot-collector
  podAnnotations:
    prometheus.io/scrape: 'true'
    prometheus.io/port: '8888'
  resources:
    requests:
      cpu: "1"
    limits:
      cpu: "1"
  config: |
    extensions:
      sigv4auth:
        region: $AWS_REGION
        service: "aps"

    receivers:
      #
      # Scrape configuration for the Prometheus Receiver
      # This is the same configuration used when Prometheus is installed using the community Helm chart
      #
      prometheus:
        config:
          global:
            scrape_interval: 60s
            scrape_timeout: 30s
            external_labels:
              cluster: $EKS_CLUSTER_NAME

          scrape_configs:
          - job_name: kubernetes-pods
            scrape_interval: 15s
            scrape_timeout: 5s
            kubernetes_sd_configs:
            - role: pod
            relabel_configs:
            - action: keep
              regex: true
              source_labels:
              - __meta_kubernetes_pod_annotation_prometheus_io_scrape
            - action: replace
              regex: (https?)
              source_labels:
              - __meta_kubernetes_pod_annotation_prometheus_io_scheme
              target_label: __scheme__
            - action: replace
              regex: (.+)
              source_labels:
              - __meta_kubernetes_pod_annotation_prometheus_io_path
              target_label: __metrics_path__
            - action: replace
              regex: ([^:]+)(?::\d+)?;(\d+)
              replacement: \$\$1:\$\$2
              source_labels:
              - __address__
              - __meta_kubernetes_pod_annotation_prometheus_io_port
              target_label: __address__
            - action: labelmap
              regex: __meta_kubernetes_pod_annotation_prometheus_io_param_(.+)
              replacement: __param_\$\$1
            - action: labelmap
              regex: __meta_kubernetes_pod_label_(.+)
            - action: replace
              source_labels:
              - __meta_kubernetes_namespace
              target_label: kubernetes_namespace
            - action: replace
              source_labels:
              - __meta_kubernetes_pod_name
              target_label: kubernetes_pod_name
            - action: drop
              regex: Pending|Succeeded|Failed|Completed
              source_labels:
              - __meta_kubernetes_pod_phase

    processors:
      batch/metrics:
        timeout: 60s

    exporters:
      prometheusremotewrite:
        endpoint: $AMP_REMOTE_WRITE_ENDPOINT
        auth:
          authenticator: sigv4auth

    service:
      extensions: [sigv4auth]
      pipelines:
        metrics:
          receivers: [prometheus]
          processors: [batch/metrics]
          exporters: [prometheusremotewrite]

---
apiVersion: rbac.authorization.k8s.io/v1
kind: ClusterRole
metadata:
  name: otel-prometheus-role
rules:
  - apiGroups:
      - ""
    resources:
      - nodes
      - nodes/proxy
      - services
      - endpoints
      - pods
    verbs:
      - get
      - list
      - watch
  - apiGroups:
      - extensions
    resources:
      - ingresses
    verbs:
      - get
      - list
      - watch
  - nonResourceURLs:
      - /metrics
    verbs:
      - get

---
apiVersion: rbac.authorization.k8s.io/v1
kind: ClusterRoleBinding
metadata:
  name: otel-prometheus-role-binding
roleRef:
  apiGroup: rbac.authorization.k8s.io
  kind: ClusterRole
  name: otel-prometheus-role
subjects:
  - kind: ServiceAccount
    name: adot-collector
    namespace: default

EOF
cat collector-config-amp.yaml | grep remote_write
        # endpoint: https://aps-workspaces.ap-northeast-2.amazonaws.com/workspaces/ws-0d032a51-2b98-43b1-90cb-f5069329f1af/api/v1/remote_write

배포…!

kubectl apply -f collector-config-amp.yaml

3. Grafana Cloud 구성

AMG 대신 Grafana Cloud를 사용해보겠습니다. 사용방법은 매우 간단!

Plugin: Amazon Managed Service for Prometheus@Grafana Labs

(a) Grafana Cloud 가입

네 이거 가입해본 적이 없어서 적어보았습니다.

(b) 플러그인 활성화 with `딸깍`

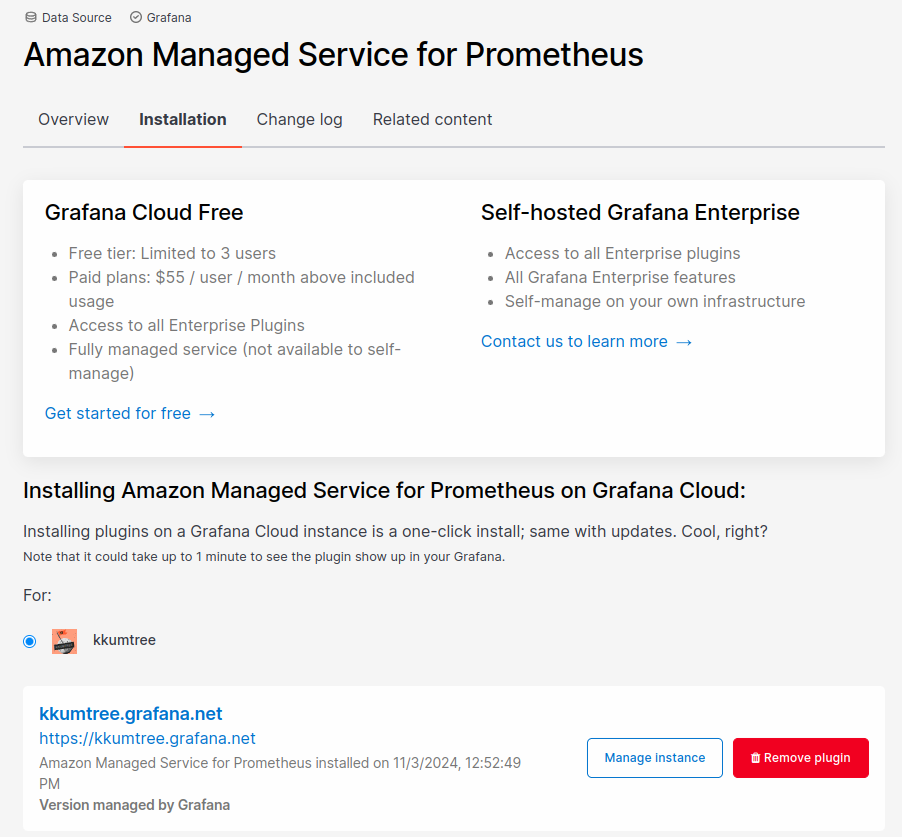

just-click-to-use-amp-as-datasource

(c) Prometheus Datasource 설정

경로: Home > Connections > Data sources > grafana-amazonprometheus-datasource
URL 예시: https://aps-workspaces.ap-northeast-2.amazonaws.com/workspaces/ws-0d032a51-2b98-43b1-90cb-f5069329f1af
- 끝에 /api/v1/query 넣었다가 계속 에러나서 뭔가 했네요.
- Docs: Add the Prometheus data source in Grafana

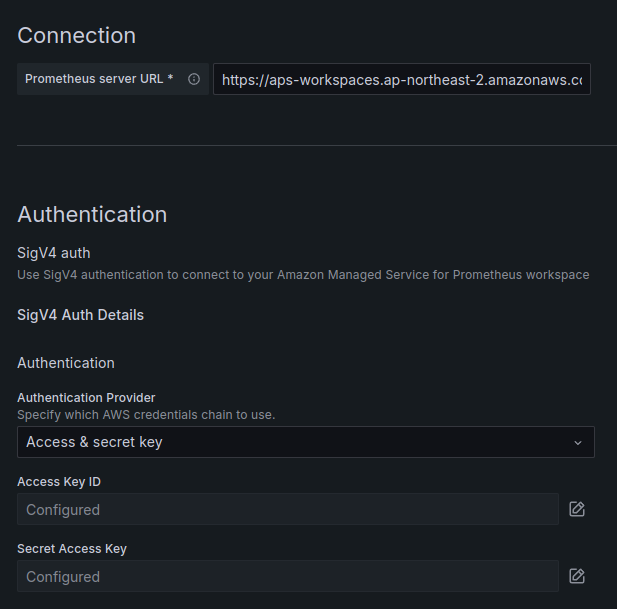

datasource-url

Auth: AWS의 SigV4를 지원합니다.
- Access Key ID / Secret Access Key 입력.
- Assume Role의 경우, Preview를 위한 티켓을 하기엔 시간이 없어 Skip.

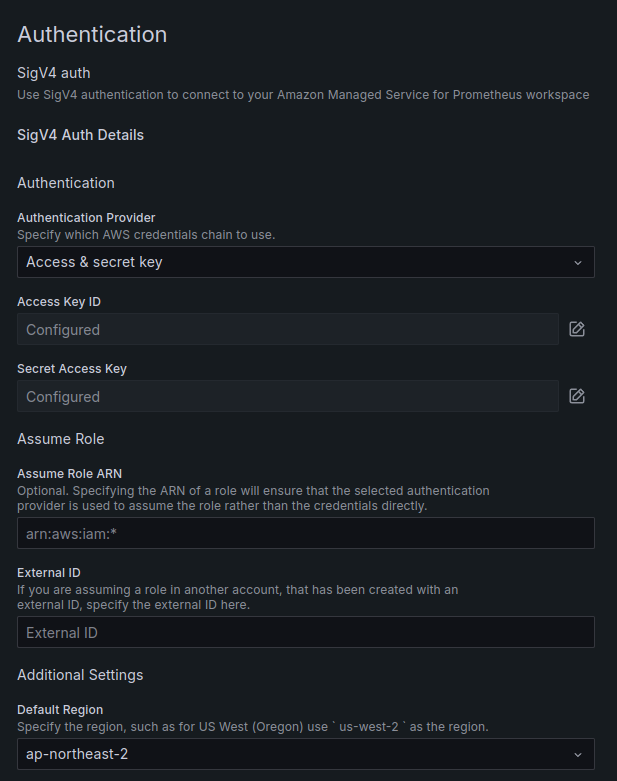

datasource-key

Additional: 리전과 TLS 설정

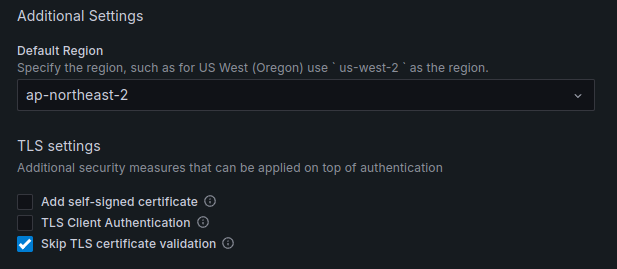

datasource-additional

4. Query 작성 후 확인

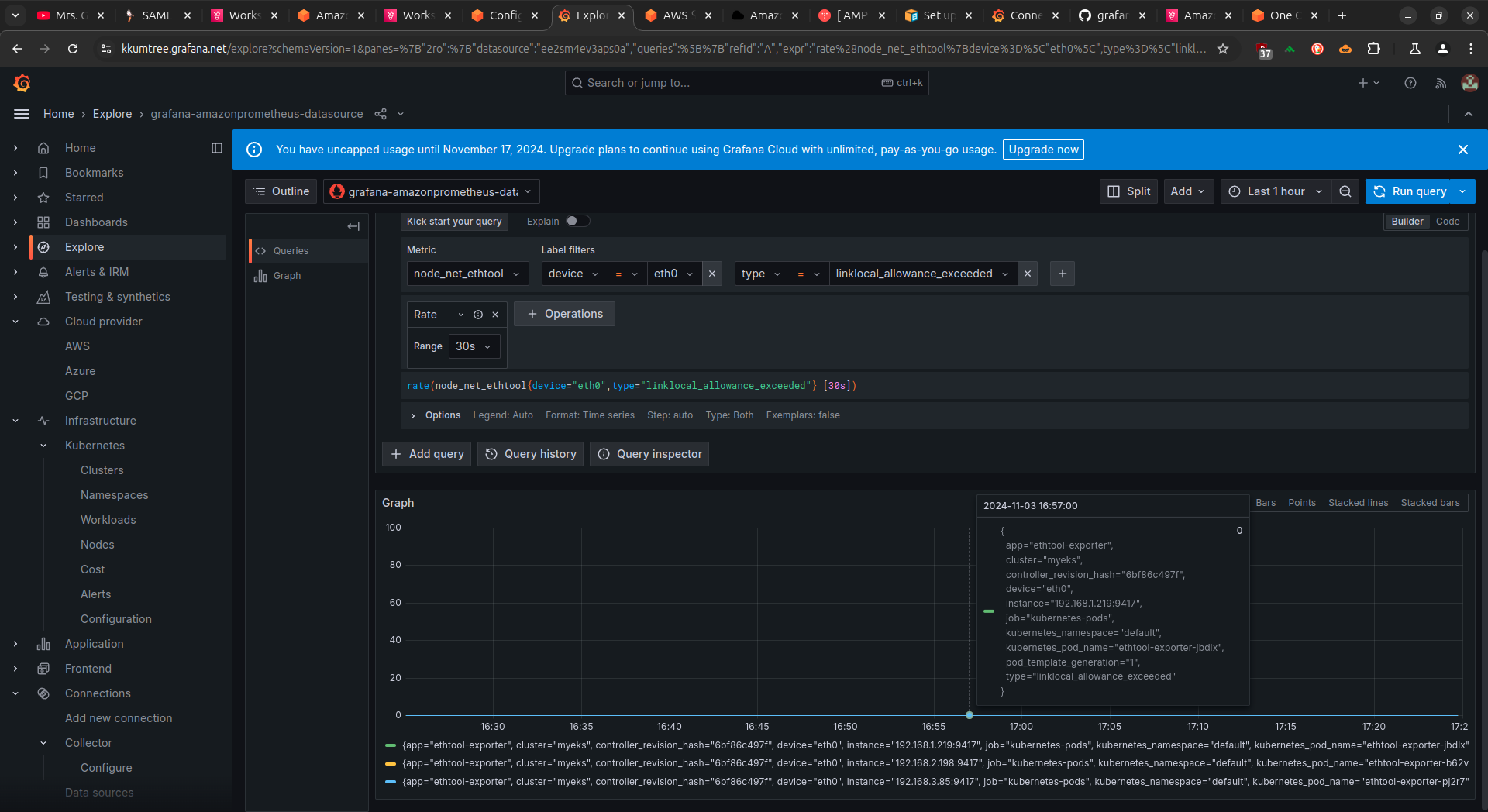

query-in-grafana-cloud

블로그에 나온 대로, 정상 출력되는 것은 확인하였습니다.

9. Vaporware

중간에 패닉이 걸려서, Grafana Cloud와 연결 목적으로 Grafana Cloud Agent를 배포해야하나 했는데, 기우였습니다. 그렇게 필요는 없어보입니다.

(a) 권한 부여 작업

curl https://gist.githubusercontent.com/rfratto/b6c5888e89faed3b04fa2533e0bec1a2/raw/bb9aa5e560009e98b48861d0b2ce54fc8a4303e6/script.bash -o agent-permissions-aks.bash
sed -i "s/YOUR_EKS_CLUSTER_NAME/${EKS_CLUSTER_NAME}/g" agent-permissions-aks.bash
cat agent-permissions-aks.bash | head -n 4
# ##!/bin/bash
# CLUSTER_NAME=myeks # SEE THIS LINE IF CHANGED TO YOUR CLUSTER NAME
# AWS_ACCOUNT_ID=$(aws sts get-caller-identity --query "Account" --output text)
# OIDC_PROVIDER=$(aws eks describe-cluster --name $CLUSTER_NAME --query "cluster.identity.oidc.issuer" --output text | sed -e "s/^https:\/\///")

실행합시다.

ls -al agent-permissions-aks.bash
# -rw-r--r-- 1 root root 4341 Nov  3 12:09 agent-permissions-aks.bash
chmod u+x agent-permissions-aks.bash
ls -al agent-permissions-aks.bash
# -rwxr--r-- 1 root root 4341 Nov  3 12:09 agent-permissions-aks.bash
./agent-permissions-aks.bash

중간 중간, error에 섬찟했지만, 생성은 된거 같습니다.

# ./agent-permissions-aks.bash
Creating a new trust policy

An error occurred (NoSuchEntity) when calling the GetRole operation: The role with name EKS-GrafanaAgent-AMP-ServiceAccount-Role cannot be found.
Appending to the existing trust policy

An error occurred (NoSuchEntity) when calling the GetPolicy operation: Policy arn:aws:iam::<ACCOUNT-ID>:policy/AWSManagedPrometheusWriteAccessPolicy was not found.
Creating a new permission policy AWSManagedPrometheusWriteAccessPolicy
{
    "Policy": {
        "PolicyName": "AWSManagedPrometheusWriteAccessPolicy",
        "PolicyId": "ANPASTWNT54JUITZSLWOX",
        "Arn": "arn:aws:iam::<ACCOUNT-ID>:policy/AWSManagedPrometheusWriteAccessPolicy",
        "Path": "/",
        "DefaultVersionId": "v1",
        "AttachmentCount": 0,
        "PermissionsBoundaryUsageCount": 0,
        "IsAttachable": true,
        "CreateDate": "2024-11-03T03:16:10+00:00",
        "UpdateDate": "2024-11-03T03:16:10+00:00"
    }
}

An error occurred (NoSuchEntity) when calling the GetRole operation: The role with name EKS-GrafanaAgent-AMP-ServiceAccount-Role cannot be found.
EKS-GrafanaAgent-AMP-ServiceAccount-Role role does not exist. Creating a new role with a trust and permission policy
arn:aws:iam::<ACCOUNT-ID>:role/EKS-GrafanaAgent-AMP-ServiceAccount-Role
2024-11-03 12:16:16 [ℹ]  IAM Open ID Connect provider is already associated with cluster "myeks" in "ap-northeast-2"

(b) Grafana Cloud Agent 배포

블로그처럼 해보려고 했는데, 해당 install-sigv4.sh 파일이 v0.18.4 까지만 지원하는 것이어서 해보고 안되면 종료하겠습니다.

kubectl create namespace grafana-agent; \
WORKSPACE="ws-0d032a51-2b98-43b1-90cb-f5069329f1af" \
ROLE_ARN="arn:aws:iam::<ACCOUNT-ID>:role/EKS-GrafanaAgent-AMP-ServiceAccount-Role" \
REGION="ap-northeast-2" \
NAMESPACE="grafana-agent" \
REMOTE_WRITE_URL="https://aps-workspaces.$REGION.amazonaws.com/workspaces/$WORKSPACE/api/v1/remote_write" \
/bin/bash -c "$(curl -fsSL https://raw.githubusercontent.com/grafana/agent/v0.18.4/production/kubernetes/install-sigv4.sh)" | kubectl apply -f -

# namespace/grafana-agent created
# serviceaccount/grafana-agent created
# configmap/grafana-agent created
# configmap/grafana-agent-deployment created
# daemonset.apps/grafana-agent created
# deployment.apps/grafana-agent-deployment created
# resource mapping not found for name: "grafana-agent" namespace: "" from "STDIN": no matches for kind "ClusterRole" in version "rbac.authorization.k8s.io/v1beta1"
# ensure CRDs are installed first
# resource mapping not found for name: "grafana-agent" namespace: "" from "STDIN": no matches for kind "ClusterRoleBinding" in version "rbac.authorization.k8s.io/v1beta1"
# ensure CRDs are installed first

그래서 아래와 같이 수동으로 재구성해서 배포 다시 했습니다.

수정된 부분
- 기존: v1beta1
- 수정: v1

---
apiVersion: rbac.authorization.k8s.io/v1
kind: ClusterRole
metadata:
  name: grafana-agent
rules:
- apiGroups:
  - ""
  resources:
  - nodes
  - nodes/proxy
  - services
  - endpoints
  - pods
  verbs:
  - get
  - list
  - watch
- nonResourceURLs:
  - /metrics
  verbs:
  - get
---
apiVersion: rbac.authorization.k8s.io/v1
kind: ClusterRoleBinding
metadata:
  name: grafana-agent
roleRef:
  apiGroup: rbac.authorization.k8s.io
  kind: ClusterRole
  name: grafana-agent
subjects:
- kind: ServiceAccount
  name: grafana-agent
  namespace: grafana-agent

kkumtree

plumber for infra
